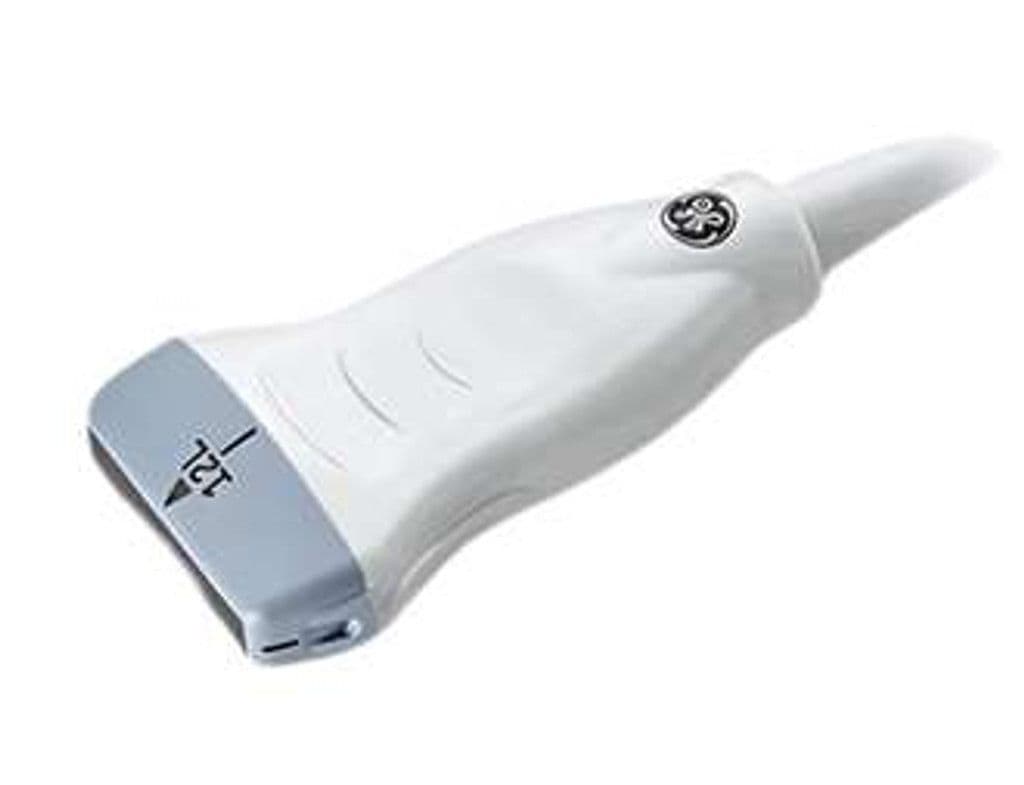

GE 12L-RS
The 12L-RS is GE's go-to high-frequency linear transducer for practices that image across vascular, thyroid, breast, and musculoskeletal exams. The 4.2 – 13.0 MHz bandwidth resolves carotid plaque morphology and tendon fiber detail while reaching 10 cm depth for deeper structures like the popliteal fossa. Its compact footprint navigates tight anatomical windows around the neck and extremities, and broad system compatibility means one probe covers imaging needs from Venue point-of-care to LOGIQ departmental systems.
Specifications
Low-to-high frequency range balances superficial resolution with 10 cm penetration depth for diverse imaging needs.
Reaches deeper vascular and musculoskeletal structures beyond the typical superficial linear range.
Standard mode set supports full vascular, small parts, and MSK diagnostic protocols.
RS-Pin interface provides the widest system compatibility in GE's transducer catalog.
Applications
Vascular Imaging
B-mode and Color Doppler visualize carotid intima-media thickness, plaque morphology, and stenosis grading per Society of Radiologists in Ultrasound criteria. PW Doppler measures peak systolic and end-diastolic velocities for ICA/CCA ratio calculations. The 4–13 MHz range also covers upper and lower extremity venous compression studies for DVT screening.
Small Parts & Thyroid
High-frequency imaging resolves thyroid nodules down to 2–3 mm for TI-RADS classification. Breast lesion characterization benefits from the probe's resolution at shallow depths, supporting BI-RADS assessment. Testicular imaging and superficial lymph node evaluation round out the small parts workflow.
Musculoskeletal Assessment
Tendon and ligament evaluation in the shoulder, elbow, wrist, knee, and ankle uses the 12L-RS's high-frequency near-field resolution. Dynamic scanning during joint movement identifies impingement, subluxation, and tendon snapping. Color Doppler detects neovascularity in tendinopathy and post-surgical inflammation.
