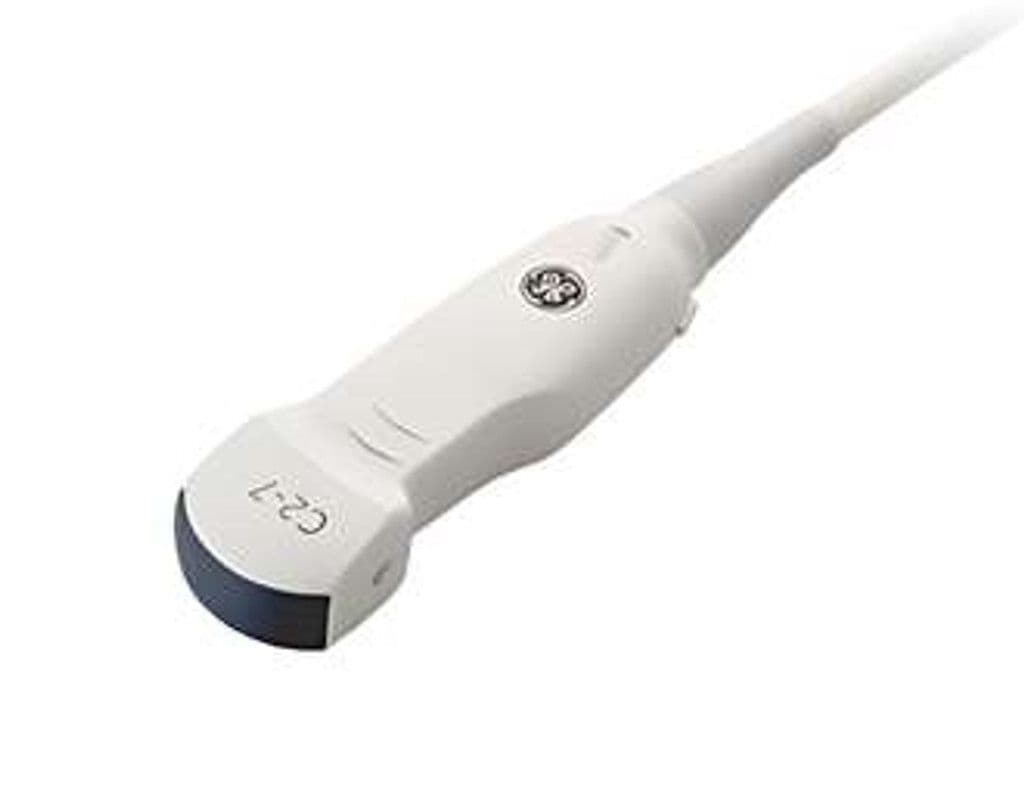

GE C2-7-D
The C2-7-D is a standard curved array transducer covering abdominal, obstetric, gynecological, and vascular applications on GE LOGIQ D-pin systems. Unlike the C2-7VN-D volume variant, this probe operates in 2D and Doppler modes only when 3D/4D acquisition is not required. The 70-degree field of view and 25 cm depth handle routine abdominal surveys and OB measurements.
Specifications
Wideband range covers deep abdominal structures through mid-depth obstetric imaging.
Wide field captures full organ cross-sections in the abdomen and pelvis.
Deep penetration supports imaging of posterior abdominal structures in larger patients.
Full Doppler suite enables abdominal vascular assessment and flow quantification.
D-pin interface connects to GE LOGIQ D-pin compatible systems.
Applications
Abdominal Imaging
The C2-7-D covers the standard abdominal exam including liver parenchyma assessment, gallbladder evaluation, kidney size and echogenicity, and aortic diameter measurement. The 70-degree field of view and 25 cm depth accommodate large body habitus without compromising anatomical coverage.
Obstetric and Gynecological Imaging
Transabdominal OB imaging from second trimester onward benefits from the curved array geometry and wideband frequency range. Biometry measurements, placental assessment, and amniotic fluid evaluation are supported across the 1.4–6.0 MHz bandwidth. Gynecological applications include uterine size measurement and fibroid characterization.
Vascular Assessment
Color and PW Doppler modes support abdominal aortic aneurysm screening, renal artery assessment, and portal venous flow evaluation. The curved array geometry provides the wide field needed for longitudinal vessel visualization in the abdomen.
